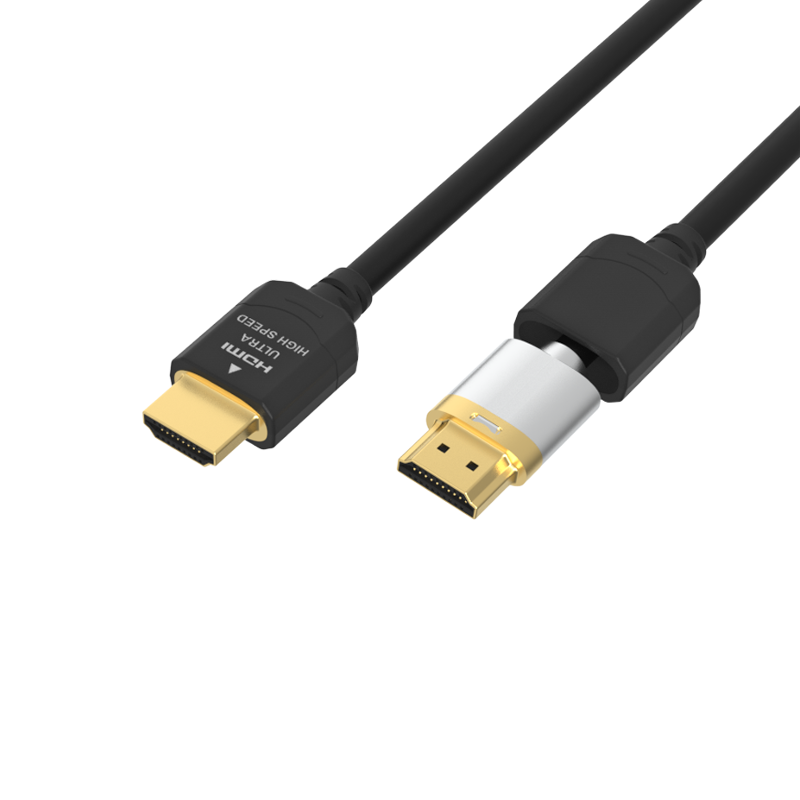

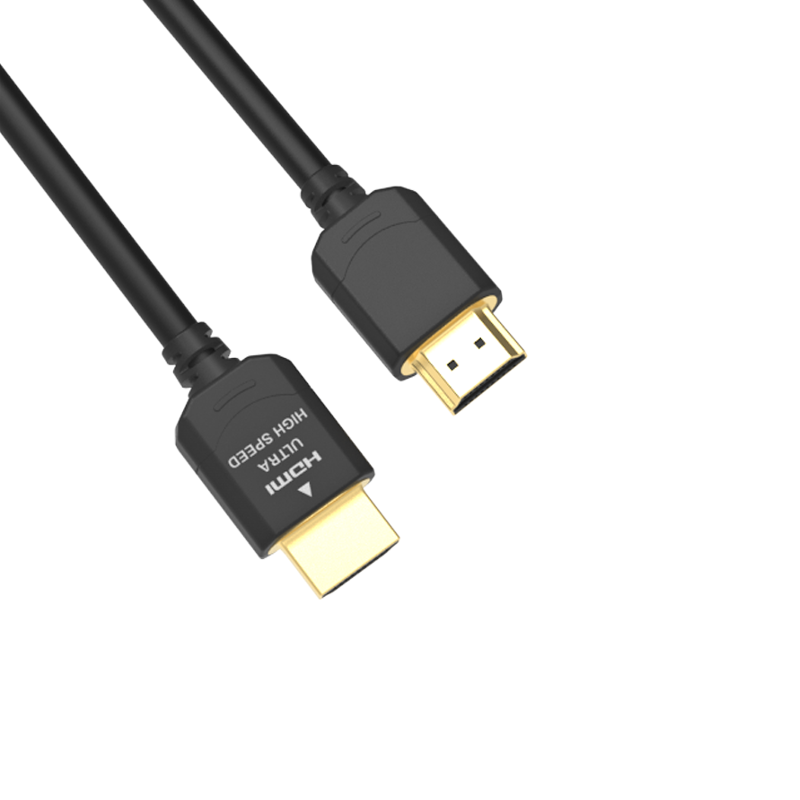

HDMI 2.2 Ultra96 High-Speed Cable
HDMI Forum HDMI 2.2 Cat.3 connector certified, supporting 96Gbps bandwidth with certified models from 0.5m to 5m for 16K/4K displays, game consoles and professional AV equipment — available for OEM/ODM customization.
- HDMI Forum Cat.3
- RoHS
- REACH
Send drawings, cable length, connector type and annual volume — our engineering team replies with a feasibility assessment within 12 hours. | Page updated: November 6, 2026
Product Highlights
Key performance and customization points for OEM/ODM programs.
- HDMI 2.2 Cat.3 certified
- 96Gbps bandwidth
- 16K@60Hz / 4K@240Hz
- Alloy EMI shielding
- Certified 0.5m–5m length range
- 24AWG / 28AWG / 30AWG constructions
Technical Specifications
Typical values — the project datasheet and approved samples prevail.
| Bandwidth | 96Gbps (HDMI 2.2 Ultra96) |
|---|---|
| Certification | HDMI Forum Cat.3 connector certification |
| Resolution | 16K@60Hz / 4K@240Hz |
| Certified lengths | 0.5m / 1m / 1.5m / 2m (30AWG), 3m (28AWG), 4m / 5m (24AWG) |
| Conductor | Oxygen-free copper |
| Shielding | Alloy housing + braided shield |
| Customization | Connector, jacket, label, packaging |
| SKU | JU96HA2A series (see certified models) |
Applications
Construction, materials and certification scope can be adapted to industry standards and customer requirements.
- 16K TVs and monitors
- Game consoles
- Professional AV
- Docking stations
- In-car entertainment
Certifications & Quality
Certification status is subject to the issuing authority's public records and the actual certificates.
- HDMI Forum Cat.3
- RoHS
- REACH
JCE holds ISO 9001, ISO 14001, ISO 45001, ISO 13485 and IATF 16949 system certifications, with in-house TDR, eye-diagram, insertion/return-loss and EMC testing capabilities.
Packaging & Delivery
Standard, customer-labelled and retail packaging supported.
- Standard export packaging; custom labels, colour boxes, manuals and cartons available.
- MOQ: from 500 pcs for standard items, 2,000 pcs for tooling customization
- Lead time: 7 days for samples / 15–25 days for mass production
- OEM (build to drawing or sample) and ODM (joint design and development) supported.
Certified Models
Models listed here hold the stated certification. Certificates are available on request.
Columns: model · gauge · length · rate · certification date. Verified against the HDMI Forum test certificates.
HDMI 2.2 — 96Gbps certified models (7)
| JU96HA2A3-0.5m | 30AWG | 0.5 m | 96Gbps | 2026-10-02 |
|---|---|---|---|---|
| JU96HA2A3-1m | 30AWG | 1 m | 96Gbps | 2026-09-12 |
| JU96HA2A3-1.5m | 30AWG | 1.5 m | 96Gbps | 2026-09-12 |
| JU96HA2A3-2m | 30AWG | 2 m | 96Gbps | 2026-09-11 |
| JU96HA2A1-3m | 28AWG | 3 m | 96Gbps | 2026-09-13 |
| JU96HA2A6-4m | 24AWG | 4 m | 96Gbps | 2026-09-07 |
| JU96HA2A6-5m | 24AWG | 5 m | 96Gbps | 2026-09-07 |
HDMI 2.1 — 48Gbps certified models (24)
| JPHA2AS-0.5m | 38AWG | 0.5m | 48G | 2021-03-28 |
|---|---|---|---|---|
| JPHA2AS-1m | 38AWG | 1m | 48G | 2021-03-28 |
| JPHA2A-1m | 36AWG | 1m | 48G | 2021-04-29 |
| JPHA2A-1.5m | 36AWG | 1.5m | 48G | 2021-04-29 |
| JPHA2A-0.5m | 34AWG | 0.5m | 48G | 2020-11-07 |
| JPHA2A-1m | 34AWG | 1m | 48G | 2020-11-07 |
| JPHA2A-1.5m | 34AWG | 1.5m | 48G | 2020-11-07 |
| JPHA2A-2m | 34AWG | 2m | 48G | 2020-11-07 |
| JPHA2AS-1m | 32AWG | 1m | 48G | 2021-01-17 |
| JPHA2AS-1.5m | 32AWG | 1.5m | 48G | 2021-01-17 |
| JPHA2AS-2m | 32AWG | 2m | 48G | 2021-01-17 |
| JPHA2A-0.6m | 30AWG | 0.6m | 48G | 2020-09-29 |
| JPHA2A-0.75m | 30AWG | 0.75m | 48G | 2020-09-29 |
| JPHA2A-1m | 30AWG | 1m | 48G | 2020-09-29 |
| JPHA2A-1.5m | 30AWG | 1.5m | 48G | 2020-09-29 |
| JPHA2A-2m | 30AWG | 2m | 48G | 2020-09-29 |
| JPHA2A-2.25m | 30AWG | 2.25m | 48G | 2020-09-29 |
| JPHA2A-3m | 30AWG | 3m | 48G | 2020-09-29 |
| JPHA2A-4m | 26AWG | 4m | 48G | 2021-09-21 |
| JPHA2A-5m | 26AWG | 5m | 48G | 2021-09-21 |
| JPHA2A-7m | 24AWG | 7m | 48G | 2021-12-07 |
| JPHA2A-10m | AOC | 10m | 48G | 2021-03-20 |
| JPHA2A-15m | AOC | 15m | 48G | 2021-03-20 |
| JPHA2A-20m | AOC | 20m | 48G | 2021-03-20 |
Related Products
Other high-speed cable assemblies in the same or adjacent interface families.
FAQ
What can be customized on this product?
Length, wire gauge, connector type, jacket material and colour, shielding construction, labelling and packaging. We can build to your drawing or sample, or co-develop an ODM design.
What are the MOQ and sampling lead time?
Standard items start at 500 pcs and new tooling at 2,000 pcs. 1–10 pcs engineering samples are available, and sampling typically takes around 7 days depending on product complexity.
Can you provide certifications and test reports?
We support HDMI Forum, USB-IF, VESA and Apple MFi certification programs and provide TDR, eye-diagram, insertion/return-loss and EMC test reports. Specific certificates and reports are confirmed per project.
Detailed Description
HDMI 2.2 Ultra96: high-speed connectivity for the 16K era
HDMI 2.2 raises single-lane bandwidth to 96Gbps, providing higher data throughput for 16K@60Hz, 4K@240Hz, high-refresh-rate gaming and professional AV. JCE has completed HDMI 2.2 Cat.3 connector certification and offers a 0.5m to 5m length range so customers can select by enclosure design and signal-integrity requirements.
The cables use oxygen-free copper conductors, an alloy EMI-shielding housing and a wear-resistant braided jacket, with 38AWG slim constructions available for narrow-bezel displays, docking stations and portable consoles. OEM/ODM programs can customize connectors, lengths, jacket colours, labels and packaging, supported by sample testing and volume delivery.
